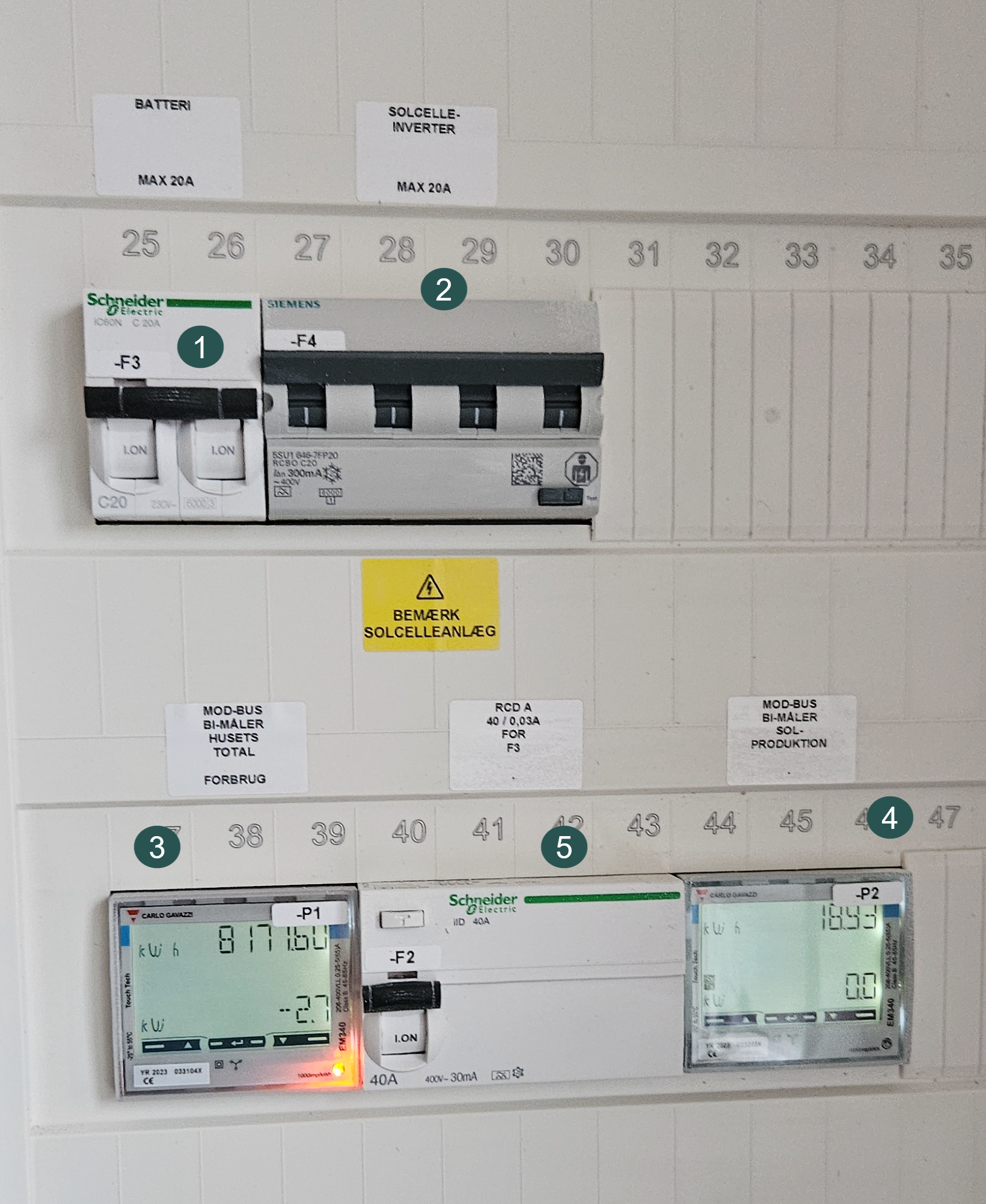

The electrical panel for an installed BAT-5 or BAT-10 typically looks like the one in the picture:
The electrical panel for an installed BAT-5 or BAT-10 typically looks like the one in the picture:
- Circuit breaker for the battery: Protects the circuit for the battery energy storage system and can be used to disconnect power to the battery.
- Circuit breaker for the solar inverter: Secures the circuit for the solar inverter and can turn off the inverter if needed.
- Meter for household consumption: Displays the total electricity consumption in the household in kWh.
- Meter for solar production: Shows how much energy the solar system has produced in kWh.
- Residual current device (RCD): Protects against electrical faults and ground faults in the household.
